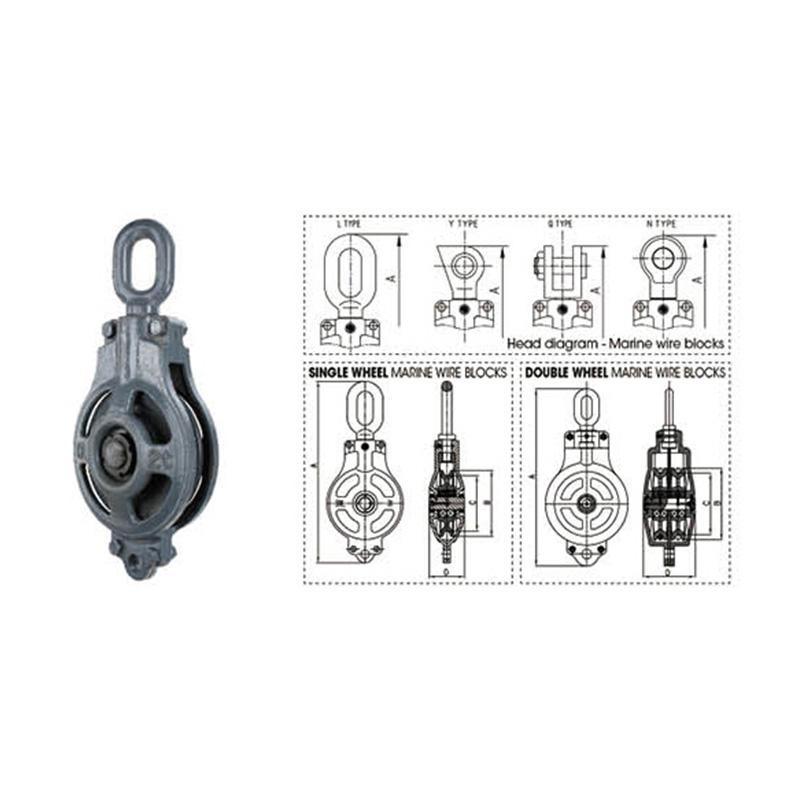

Double Wheel Marine Wire Blocks

Double wheel marine wire blocks are a type of pulley system used on boats and ships. They are designed to handle heavy loads and are commonly used in rigging and sailing applications.
The main advantage of double wheel marine wire blocks is their ability to increase mechanical advantage and reduce friction. When a wire or rope is passed through the grooves of the wheels, the load is distributed evenly across the surfaces, reducing wear and tear on the line. The multiple wheels also help to increase the amount of force that can be applied to the line, allowing for greater strength and control.

+86-18057423992 tianye@tywebbing.com
Get a quote
PREV：YB Marine Eye Wire Blocks
NEXT：Single Wheel Marine Wire Blocks
  • Item No. S.W.L T.L For wire Dia A mm B C D N.W. (kg)
    tons KN (tons) mm L type N type Y type Q type L type N type Y type Q type
    TY051201 50(5) 100(10) 16-20 562 498 498 517 194 164 166 30 30 30.5 32
    TY051202 80(8) 160(16) 16-20 642 600 600 615 260 224 180 50 51 51 55
    TY051203 100(10) 200(20) 20-22 730 680 680 688 300 260 205 70 70 70 74
    TY051204 160(16) 320(32) 20-24 840 773 773 790 340 295 250 110 111 112 118
    TY051205 200(20) 400(40) 24-26 1035 945 945 913 406 356 271 140 143 143 157
    TY051206 250(25) 500(50) 26-28 1074 1010 1010 1035 430 378 308 180 182 185 205
    TY051207 320(32) 640(64) 26-28 1174 1090 1090 1120 460 410 308 227 230 232 260
