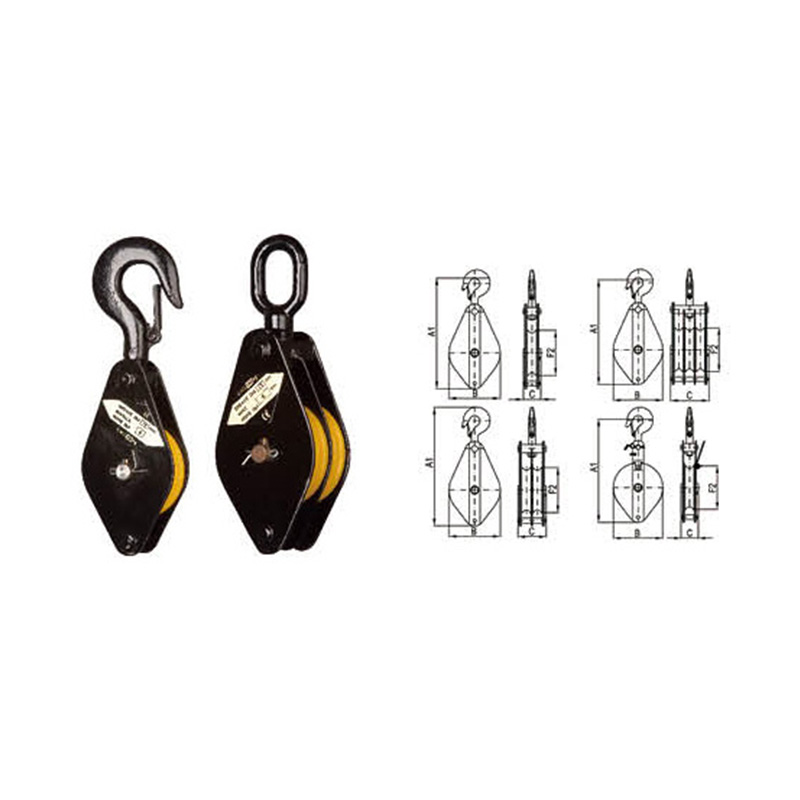

Wire rope snatch blocks are a type of pulley system used to change the direction of a wire rope or cable. Wire rope snatch blocks are commonly used in various industries such as construction, mining, and forestry. They are specifically designed to handle heavy loads and can be used in conjunction with cranes, winches, or other lifting equipment.
+86-18057423992
tianye@tywebbing.com
| ltem No. | S.W.L | Sheave Dia | Dimensions mm | For wire Dia | N.W. | |||||
| Hook | Eye | tons | D mm | Hook A1 | Eye A2 | B | C | mm | kg | |
| TY051101H | TY051101E | 1B | 0.25 | 63 | 208.4 | 202.4 | 68 | 40 | 5 | 10 |
| TY051102H | TY051102E | 0.25 | 75 | 222.4 | 216.4 | 80 | 40 | 6 | 12 | |
| TY051103H | TY051103E | 0.5 | 100 | 300.5 | 283.5 | 108 | 48.5 | 8 | 16 | |
| TY051104H | TY051104E | 1 | 125 | 346 | 332.5 | 140 | 53.5 | 10 | 20 | |
| TY051105H | TY051105E | 1 | 150 | 392 | 378.5 | 168 | 60 | 12 | 24 | |
| TY051106H | TY051106E | 1.5 | 180 | 456.7 | 450 | 204 | 81 | 15 | 30 | |
| TY051107H | TY051107E | 2 | 200 | 505.8 | 488 | 220 | 91.5 | 16 | 32 | |
| TY051108H | TY051108E | 3 | 250 | 642.7 | 627 | 268 | 114 | 20 | 40 | |
| TYO51109H | TY051109E | 2B | 0.25 | 63 | 208.4 | 202.4 | 68 | 63 | 5 | 10 |
| TY051110H | TY051110E | 0.25 | 75 | 2224 | 216.4 | 80 | 63 | 6 | 12 | |
| TYO51111H | TY051111E | 0.75 | 100 | 315.4 | 285 | 108 | 76 | 8 | 16 | |
| TY051112H | TY051112E | 1 | 125 | 346 | 332.5 | 140 | 86 | 10 | 20 | |
| TY051113H | TY051113E | 1.5 | 150 | 412.7 | 400 | 168 | 95 | 12 | 24 | |
| TY051114H | TY051114E | 2 | 180 | 469.8 | 452 | 204 | 125 | 15 | 30 | |
| TYO51115H | TY051115E | 3 | 200 | 522.8 | 504 | 220 | 144 | 16 | 32 | |
| TY051116H | TY051116E | 4 | 250 | 653 | 650 | 268 | 183 | 20 | 40 | |
| TY051117H | TY051117E | 3B | 0.25 | 63 | 208.4 | 202.4 | 68 | 87 | 5 | 10 |
| TY051118H | TY051118E | 0.25 | 75 | 222.4 | 216.4 | 80 | 87 | 6 | 12 | |
| TYO51119H | TY051119E | 0.75 | 100 | 315.9 | 285 | 108 | 104 | 8 | 16 | |
| TY051120H | TY051120E | 1 | 125 | 346 | 332.5 | 140 | 119 | 10 | 20 | |
| TY051121H | TY051121E | 1.5 | 150 | 412.7 | 400 | 168 | 130 | 12 | 24 | |
| TY051122H | TY051122E | 2 | 180 | 469.8 | 452 | 204 | 169 | 15 | 30 | |
| TY051123H | TY051123E | 4 | 200 | 545.2 | 529.5 | 220 | 196 | 16 | 32 | |
| TY051124H | TY051124E | 5 | 250 | 688.5 | 671 | 268 | 253 | 20 | 40 | |
| TY051125H | TY051125E | 1S | 0.25 | 63 | 208.4 | 202.4 | 68 | 40 | 5 | 10 |
| TY051126H | TY051126E | 0.25 | 75 | 222.4 | 216.4 | 80 | 40 | 6 | 12 | |
| TY051127H | TY051127E | 0.5 | 100 | 300.5 | 283.5 | 108 | 58.5 | 8 | 16 | |
| TYO51128H | TY051128E | 1 | 125 | 361 | 347.5 | 140 | 62.5 | 10 | 20 | |
| TYO51129H | TY051129E | 1 | 150 | 392 | 378.5 | 168 | 7 | 12 | 24 | |
| TY051130H | TY051130E | 1.5 | 180 | 456.7 | 450 | 204 | 8 | 15 | 30 | |
| TYO51131H | TY051131E | 2 | 200 | 505.8 | 488 | 220 | 91.5 | 16 | 32 | |
| TY051132H | TY051132E | 3.5 | 250 | 642.7 | 627 | 268 | 114 | 20 | 40 | |
NingBo Jiangdong Tianye Rigging Co,Ltd. is specialized in manufacturing quality lashing, lifting, and rigging products in China. Our company nearby beautiful sea port-Ningbo, where has convenient transportation, and wella good industries environment. We have own factory to do various products.
Our main products including ratchet lashing, cargo straps, and webbing sling. round sling, endless slings, shackles, chains, lifting clamps, hoists, and some tools, etc..Specialized, since 2009 in the production of a comprehensive range of flat lifting slings, cargo straps, one-way slings, and endless round slings, which are all marketed under the famous brand name.
Strictly inspect and monitor the quality of each batch of products according to the supplier's specifications.
Strictly control procurement costs and implement efficient production controls to reduce production costs.
The company's production capacity is very sufficient, laying the foundation for continued production.
Implement round-the-clock tracking service to make after-sales service faster and more considerate.
