Standard Wire Rope Thimbles

●Recommended for Light Duty Service.
●Hot Dip Galvanized or Zinc Plated G-41 1Meets the Requirements
●of Federal Specification FF-T-276b Type II.

+86-18057423992 tianye@tywebbing.com
Get a quote

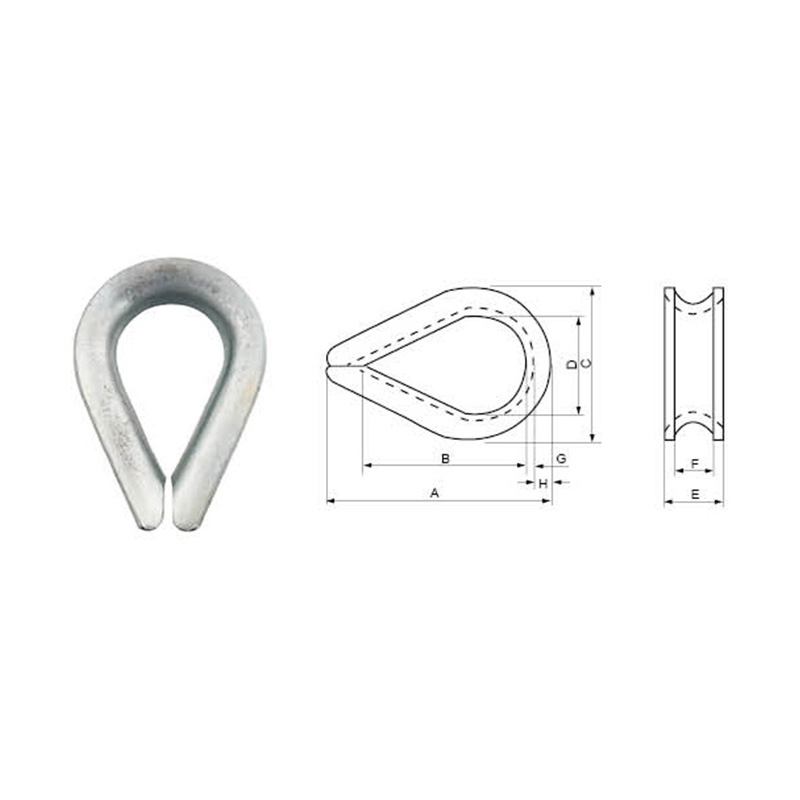

  • Item No. Rope DIA. Weight Per 100 Dimensions (in.)
    (in.) (lbs.) A B C D E F G H
    TY025471 1/8 2.5 1.94 1.31 1.06 0.69 0.25 0.16 0.05 0.13
    TY025472 3/16 2.5 1.94 1.31 1.06 0.69 0.31 0.22 0.05 0.13
    TY025473 1/4 3.75 1.94 1.31 1.06 0.69 0.38 0.28 0.05 0.13
    TY025474 5/16 ; 3.75 2.13 1.5 1.25 0.81 0.44 0.34 0.05 0.13
    TY025475 3/8 6.25 2.38 1.63 1.47 0.94 0.53 0.41 0.06 0.16
    TY025476 1/2 12.5 2.75 1.88 1.75 1.13 0.69 0.53 0.08 0.19
    TY025477 5/8 25 3.5 2.25 2.38 1.38 0.91 0.66 0.13 0.34
    TY025478 3/4 50 3.75 2.5 2.69 1.63 1.08 0.78 0.14 0.34
    TY025479 7/8 85 5 3.5 3.19 1.88 1.27 0.94 0.16 0.44
    TY025480 1 100 5.69 4.25 3.75 2.5 1.39 1.06 0.16 0.41
    TY025481 1 1/8"-1 1/4" 175 6.25 4.5 4.31 2.75 1.75 1.31 0.22 0.5
