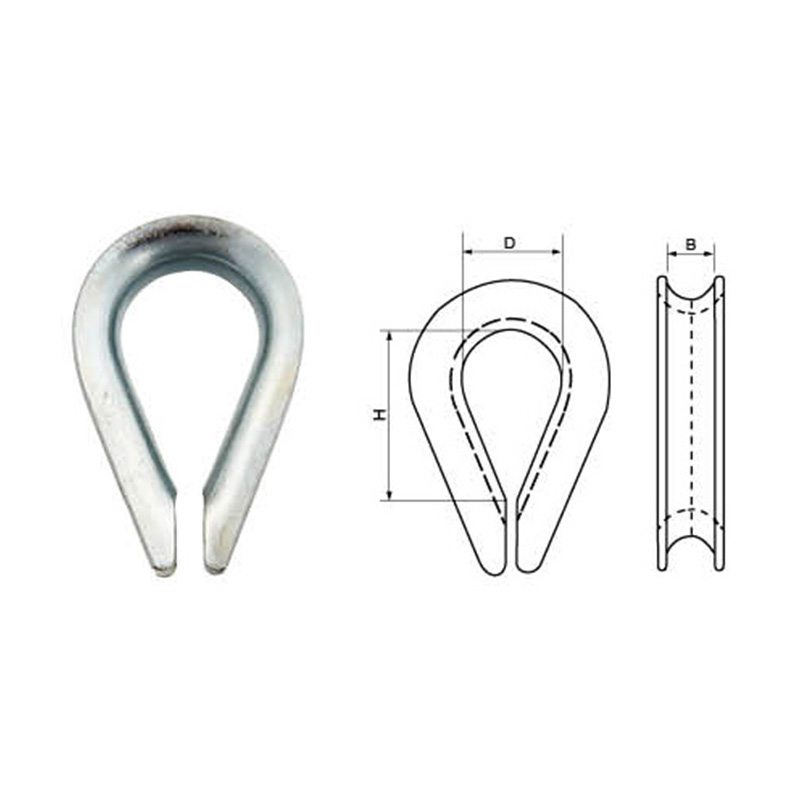

Thimble DIN6899 is available in two designs, A and B. The main difference between the two designs is the shape of the inner side of the thimble. Design A has a straight inner side, while Design B has a curved inner side. The choice between the two designs depends on the specific requirements of the application and the type of wire rope being used.
+86-18057423992
tianye@tywebbing.com
| Item No. | Size | B | D | H |
| mm | mm | mm | mm | |
| TY025431 | 2.5x3 | 3 | 12 | 19 |
| TY025432 | 3.5x4 | 4 | 13 | 21 |
| TY025433 | 4x5 | 5 | 14 | 23 |
| TY025434 | 5x6 | 6 | 16 | 25 |
| TY025435 | 6x7 | 7 | 18 | 28 |
| TY025436 | 7x8 | 8 | 20 | 32 |
| TY025437 | 8x9 | 9 | 22 | 35 |
| TY025438 | 9x10 | 10 | 24 | 38 |
| TY025439 | 10x11 | 11 | 26 | 41 |
| TY025440 | 11x12 | 12 | 28 | 45 |
| TY025441 | 12x13 | 13 | 30 | 48 |
| TY025442 | 13x14 | 14 | 32 | 51 |
| TY025443 | 14x15 | 15 | 34 | 54 |
| TY025444 | 15x16 | 16 | 36 | 58 |
| TY025445 | 16x17 | 17 | 38 | 6 |
| TY025446 | 16x18 | 18 | 40 | 64 |
| TY025447 | 18x20 | 20 | 45 | 72 |
| TY025448 | 20x22 | 22 | 50 | 80 |
| TY025449 | 22x24 | 24 | 56 | 90 |
| TY025450 | 24x26 | 26 | 62 | 99 |
| TY025451 | 26x28 | 28 | 70 | 112 |
| TY025452 | 28x30 | 30 | 75 | 120 |
| TY025453 | 30x32 | 32 | 80 | 128 |
| TY025454 | 32x34 | 34 | 95 | 152 |
| TY025455 | 34x36 | 36 | 100 | 160 |
| TY025456 | 36x38 | 38 | 110 | 176 |
| TY025457 | 38x40 | 40 | 115 | 184 |
| TY025458 | 40x42 | 42 | 120 | 192 |
| TY025459 | 42x45 | 45 | 150 | 240 |
