US Type High Tensile Forged Shackle G209

The US-type high tensile forged shackle is a heavy-duty shackle designed to withstand high loads and provide strength and durability. These shackles are commonly used in industrial and marine applications where safety and reliability are critical.
The shackle is forged, which means it is shaped and formed from a solid piece of steel rather than being welded or assembled from multiple parts. This forging process adds extra strength and integrity to the shackle, reducing the risk of failure or breakage.

+86-18057423992 tianye@tywebbing.com
Get a quote
PREV：US Type High Tensile Forged Shackle G210
NEXT：Trailer Hook

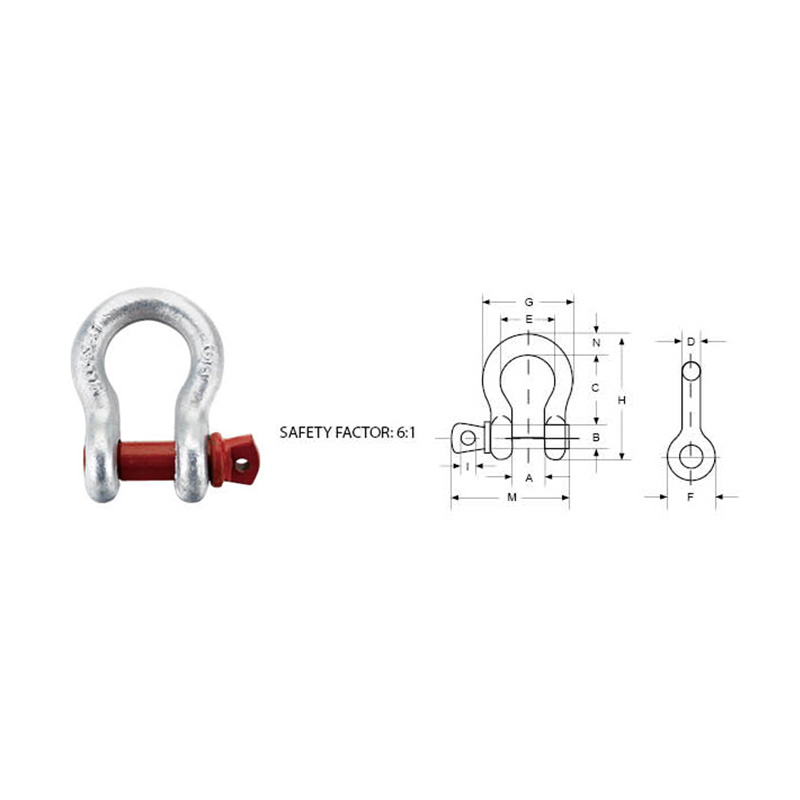

  • Item No. Nominal Size Working Load Limit Dimensions (mm) N.W.
    each
    in tons A B C D E F G H I M N kg
    TY025001 3/16 1/3 9.65 6.35 22.4 4.85 15.2 14.2 24.9 37.3 4.06 28.4 4.85 0.03
    TY025002 1/4 1/2 11.9 7.85 28.7 6.35 19.8 15.5 32.5 46.7 4.85 35.1 6.35 0.05
    TY025003 5/16 3/4 13.5 9.65 31 7.85 21.3 19.1 37.3 53 5.6 42.2 7.85 0.09
    TY025004 3/8 1 16.8 11.2 36.6 9.65 26.2 23.1 45.2 63 6.35 51.5 9.65 0.14
    TY025005 7/16 1-1/2 19.1 12.7 42.9 11.2 29.5 26.9 51.5 74 7.85 60.5 11.2 0.17
    TY025006 1/2 2 20.6 16 47.8 12.7 33.3 30.2 58.5 83.5 9.65  68.5 12.7 0.33
    TY025007 5/8 3-1/4 26.9  19.1 60.5 16 42.9 38.1 74.5 106 11.2 85 17.5 0.62
    TY025008 3/4 4-3/4 31.8 22.4 71.5 19.1 51 46 89 126 12.7 101 20.6 1.07
    TY025009 7/8 6-1/2 36.6  25.4 84 22.4 58 53 102 148 12.7 114 24.6 1.64
    TY025010 1 8-1/2 42.9 28.7 95.5 25.4 68.5 60.5 119 167 14.2 129 26.9 2.28
    TY025011 1-1/8 9-1/2 46 31.8 108 29.5 74 68.5 131 190 16 142 31.8 3.36
    TY025012 1-1/4 12 51.5 35.1 119 32.8 92.5 76 146 210 17.5 156 35.1 4.31
    TY025013 1-3/8 13-1/2 57 38.1 133 36.1 92 84 162 233 19.1 174 38.1 6.14
    TY025014 1-1/2 17 60.5 41.4 146 39.1 98.5 92 175 254 20.6 187 41.1 7.8
    TY025015 1-3/4 25 73 51 178 46.7 127 106 225 313 25.4 231 57 12.6
    TY025016 2 35 82.5 57 197 53 146 122 253 348 31 263 61 20.4
    TY025017 2-1/2 55 105 70 267 69 184 145 327 453 35.1 330 79.5 38.9
